Serial transport layer header. More...

#include <serial/serial.h>
#include <serial/serial_common.h>
#include <zephyr/sys/ring_buffer.h>

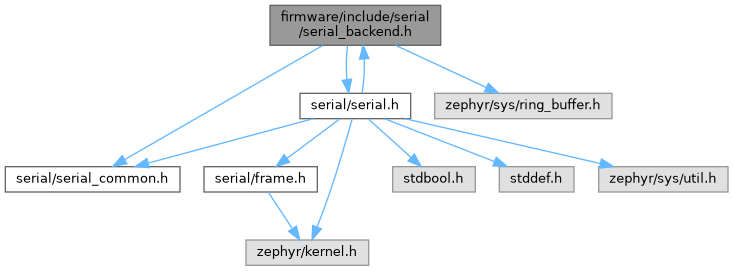

Include dependency graph for serial_backend.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	serial_uart_common
	Serial transfer layer common internals. More...
struct	serial_uart_int_driven
	Serial interrupt driven transport layer internals. More...

Macros
#define	SERIAL_UART_STRUCT struct serial_uart_int_driven
#define	SERIAL_UART_DEFINE(_name)
	Macro for creating a serial transport instance.

Functions
const struct ares_serial *	ares_serial_backend_uart_get_ptr (void)
	Provides pointer to the ares_serial backend instance.

Variables
const struct ares_serial_transport_api	ares_serial_uart_transport_api

Detailed Description

Serial transport layer header.

Date: 3/20/26

Author: Tom Schmitz <tschm.nosp@m.itz@.nosp@m.andre.nosp@m.w.cm.nosp@m.u.edu>

Macro Definition Documentation

◆ SERIAL_UART_DEFINE

#define SERIAL_UART_DEFINE ( _name )

Value:

    static SERIAL_UART_STRUCT _name##_backend_uart;                            \
    static struct ares_serial_transport _name = {                              \
        .api = &ares_serial_uart_transport_api, .ctx = &_name##_backend_uart}

Macro for creating a serial transport instance.

Parameters

_name The instance name.

◆ SERIAL_UART_STRUCT

#define SERIAL_UART_STRUCT struct serial_uart_int_driven

Serial transport implementation struct.

Function Documentation

◆ ares_serial_backend_uart_get_ptr()

const struct ares_serial * ares_serial_backend_uart_get_ptr ( void )

Provides pointer to the ares_serial backend instance.

Returns: Pointer to the backend serial instance.

Variable Documentation

◆ ares_serial_uart_transport_api

const struct ares_serial_transport_api ares_serial_uart_transport_api

extern

Serial transport API.
