lora.h File Reference

LoRa API. More...

#include <lora/packet.h>
#include <zephyr/drivers/lora.h>
#include <zephyr/kernel.h>
#include <lora/lora_backend.h>

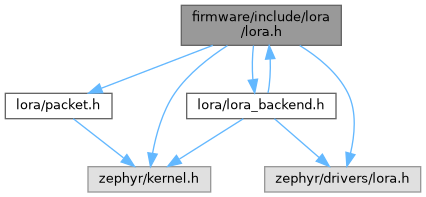

Include dependency graph for lora.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	ares_lora_transport_api
	Unified LoRa transport interface. More...
struct	ares_lora_transport
	Transfer interface. More...
struct	ares_lora_buf
	Unified buffer structure for LoRa. More...
struct	ares_lora_command
	LoRa packet payload handler descriptor. More...
struct	ares_lora_ctx
	Ares LoRa instance context. More...
struct	ares_lora
	Ares LoRa internals. More...

Macros
#define	ARES_LORA_TRX_BUF_SIZE   512
#define	ARES_LORA_DEFINE(_name, _transport)
	Macro for defining an ares_lora instance.

Typedefs
typedef void(*	lora_transport_handler_t) (enum lora_transport_evt evt, void *ctx)
	LoRa transport event handler prototype.

Enumerations
enum	lora_transport_evt { LORA_TRANSPORT_EVT_RX_RDY , LORA_TRANSPORT_EVT_TX_RDY }
enum	ares_lora_signal { ARES_LORA_SIGNAL_RXRDY , ARES_LORA_SIGNAL_TXDONE , ARES_LORA_SIGNALS }
	Signals for the LoRa interface. More...

Functions
int	ares_lora_init (const struct ares_lora *lora, const void *transport_config)
	Function for initializing a transport layer and internal lora state.
int	ares_lora_register_command_callbacks (const struct ares_lora *lora, const struct ares_lora_command *commands, size_t num_commands)
	Function for registering the lora packet handlers.
int	ares_lora_write_packet (const struct ares_lora *lora, const struct ares_packet *packet)
	Function to write a packet to the LoRa transfer layer.
int	ares_lora_configure_lora (const struct ares_lora *lora, const struct lora_modem_config *config)
	Function to send new configurations to the LoRa transfer layer.
int	ares_lora_set_packet_id (const struct ares_lora *lora, struct ares_packet *packet)
	Function to update the packet ID of the given packet from the lora instance.

Detailed Description

LoRa API.

Date

3/24/26

Author

Tom Schmitz <tschm.nosp@m.itz@.nosp@m.andre.nosp@m.w.cm.nosp@m.u.edu>

Macro Definition Documentation

ARES_LORA_DEFINE

#define ARES_LORA_DEFINE	(		_name,
			_transport )

Value:

    static struct ares_lora_ctx UTIL_CAT(_name, _ctx);                         \
    static K_KERNEL_STACK_DEFINE(UTIL_CAT(_name, _stack),                      \
                                 CONFIG_ARES_LORA_STACK_SIZE);                 \
    static struct k_thread UTIL_CAT(_name, _thread);                           \
    static const struct ares_lora _name = {.iface = (_transport),              \
                                           .ctx = &UTIL_CAT(_name, _ctx),      \
                                           .name = STRINGIFY(_name),           \
                                           .thread =                           \
                                               &UTIL_CAT(_name, _thread),      \
                                           .stack = UTIL_CAT(_name, _stack)}

Macro for defining an ares_lora instance.

Parameters

[in]	_name	Instance name.
[in]	_transport	Pointer to the transport interface.

ARES_LORA_TRX_BUF_SIZE

#define ARES_LORA_TRX_BUF_SIZE   512

Unified LoRa buffer size for transmitting and receiving.

Typedef Documentation

lora_transport_handler_t

typedef void(* lora_transport_handler_t) (enum lora_transport_evt evt, void *ctx)

LoRa transport event handler prototype.

Parameters

[in]	evt	The event that occurred.
[in]	ctx	Pointer to the event context.

Enumeration Type Documentation

ares_lora_signal

enum ares_lora_signal

Signals for the LoRa interface.

Enumerator
ARES_LORA_SIGNAL_RXRDY	Rx data ready.
ARES_LORA_SIGNAL_TXDONE	Done transmitting. Must be last one before ARES_LORA_SIGNALS
ARES_LORA_SIGNALS	Last enumerator.

lora_transport_evt

enum lora_transport_evt

LoRa transport events.

Enumerator
LORA_TRANSPORT_EVT_RX_RDY	LoRa Rx data ready.
LORA_TRANSPORT_EVT_TX_RDY	LoRa Tx ready.

Function Documentation

ares_lora_configure_lora()

int ares_lora_configure_lora	(	const struct ares_lora *	lora,
		const struct lora_modem_config *	config )

Function to send new configurations to the LoRa transfer layer.

Parameters

[in]	lora	Pointer to lora instance.
[in]	config	Pointer to new LoRa modem configurations.

Returns

0 on success.

-EINVAL if parameters are invalid.

negative error code otherwise.

ares_lora_init()

int ares_lora_init	(	const struct ares_lora *	lora,
		const void *	transport_config )

Function for initializing a transport layer and internal lora state.

Parameters

[in]	lora	Pointer to lora instance.
[in]	transport_config	Transport configuration during initialization.

Returns

0 on success.

negative error code otherwise.

ares_lora_register_command_callbacks()

int ares_lora_register_command_callbacks	(	const struct ares_lora *	lora,
		const struct ares_lora_command *	commands,
		size_t	num_commands )

Function for registering the lora packet handlers.

Parameters

[in]	lora	Pointer to lora instance.
[in]	commands	The array of lora packet handlers.
[in]	num_commands	The number of entries in the array.

Returns

0 on success.

-EINVAL if parameters are invalid.

ares_lora_set_packet_id()

int ares_lora_set_packet_id	(	const struct ares_lora *	lora,
		struct ares_packet *	packet )

Function to update the packet ID of the given packet from the lora instance.

Parameters

[in]	lora	Pointer to lora instance.
[in,out]	packet	Pointer to packet to update the packet ID for.

Returns

0 on success.

-EINVAL if parameters are invalid.

ares_lora_write_packet()

int ares_lora_write_packet	(	const struct ares_lora *	lora,
		const struct ares_packet *	packet )

Function to write a packet to the LoRa transfer layer.

Parameters

[in]	lora	Pointer to lora instance.
[in]	packet	Pointer to packet to send over LoRa.

Returns

0 on success.

-EINVAL if parameters are invalid.

negative error code otherwise.

Note

This automatically manages the sequence number of the packet.
